Model: DLDS-CTMS1000 CNC maintenance application system platform
- Dolang
- China
- 30-60 days
DLDS-CTMS1000 CNC maintenance application system platform integrates fault simulation, diagnosis, operation and maintenance training. It supports real machine simulation, electrical troubleshooting and program debugging, with modular design and easy operation. Ideal for vocational education and training, it effectively improves students’ practical CNC maintenance and application skills.
Product Overview

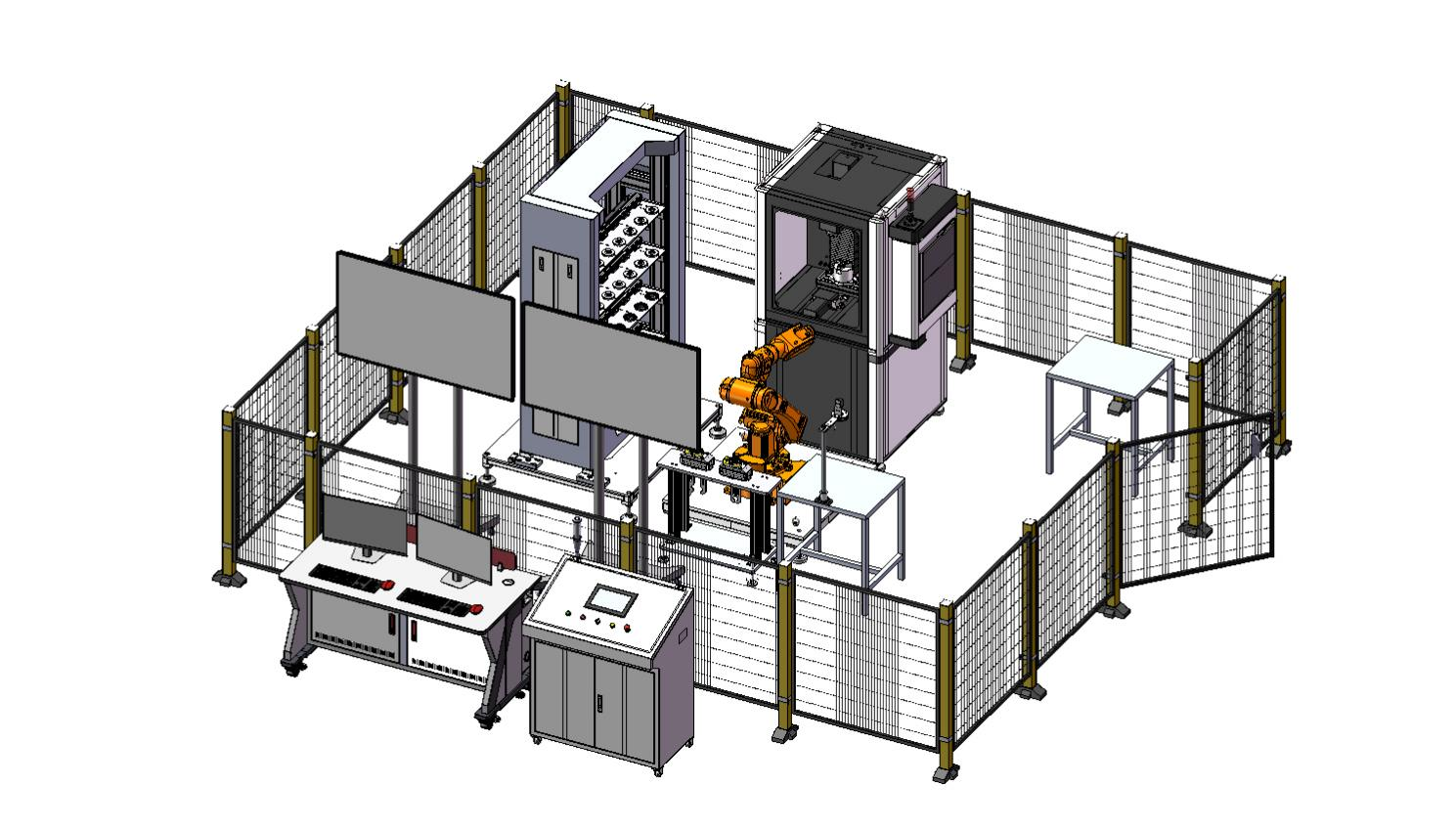

The DLDS-CTMS1000 CNC maintenance application system platform consists of a central electrical control system, a CNC machining unit, an industrial robot unit, an automated warehousing unit, intelligent analysis and simulation software for machine tool remanufacturing, intelligent compensation software for on-machine measurement of CNC machine tools, and the Dolang Creation Cloud Platform,
Technical Parameters
1. Operating power supply: AC220V±10%, 50Hz;
2. Rated power: ≤5KW;
3. External dimensions:
The footprint is approximately 6000mm × 5800mm (L × W);
The equipment's external dimensions are approximately 5200mm × 4900mm × 2050mm. (L×W×H ) ；
4. Working environment: Temperature 5℃～+40℃, relative humidity <85% (25℃);
5. Safety protection: It has multiple protections including short circuit, overload, alarm, and emergency stop.
Training Contents
Task 1: Machine Tool Residual Value Assessment and Reliability Measurement
Task 2: Machine Tool Remanufacturing and System Optimization
Task 3: Intelligentization and Operation of Machine Tool Equipment
Task 4: Energy Efficiency Assessment of Remanufacturing
