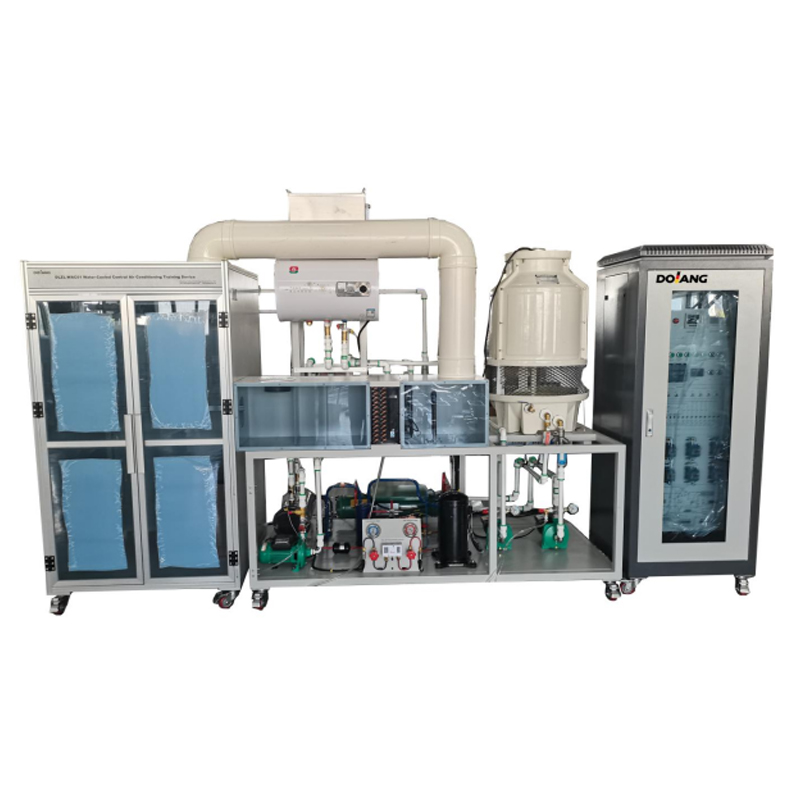

DLZL-WAC01 Water-Cooled AC Training & Teaching Equipment
- Dolang
- China
- 30-60 days
DLZL-WAC01 Water-Cooled Central Air Conditioning Training Device simulates real water-cooled AC system for operation, installation, debugging and fault diagnosis. It integrates water circulation, refrigeration circuit and electrical control with modular design, stable performance and safe operation. It is ideal for vocational colleges and training centers to cultivate professional HVAC technicians and improve practical skills effectively.
Equipment Overview
The DLZL-WAC01 training device is highly versatile. It is suitable not only for teaching courses related to refrigeration technology, refrigeration fluid machinery, principles and maintenance of household refrigeration equipment, and cold storage and refrigeration technology in higher vocational colleges and vocational schools, but can also serve as a training base for professional qualification certifications such as Refrigeration Equipment Maintenance Worker (Primary, Intermediate, Advanced). Furthermore, this device supports the teaching of various other courses related to refrigeration equipment maintenance, including "Refrigeration Equipment Maintenance Worker (Advanced)", "Principles and Maintenance of Refrigeration Equipment", "Operation, Installation, and Maintenance of Refrigeration and Air Conditioning Units", "Central Air Conditioning Worker (Primary, Intermediate, Advanced)", and "Principles and Maintenance of Household Refrigeration Equipment".
Technical Parameters
System Footprint: Length × Width × Height ≈ 3.8m × 1m × 1.9m
Maximum Cooling Capacity: 7.5kW
Maximum Total Input Power: 6.5kW
Rated Cooling Power: 3.8kW
Rated Heating Power: 2.0kW
Rated Input Current: 7A
Circulating Air Volume: 700 m³/h
Input Power: Three-Phase Five-Wire, AC 380V ±10%, 50Hz
Refrigerant: R407C (Environmentally friendly refrigerant)
Leakage Trip Current: ≤30mA
Safety Protection Measures: Equipped with four protection measures: over-voltage, over-current, overload, leakage, and grounding, complying with relevant national standards.
Training Contents
Structure of Central Air Conditioning Systems and Working Principles of Equipment
Training and Assessment on Central Air Conditioning Startup, Operation, Shutdown, and Commissioning Techniques
Training on Central Air Conditioning Operation and Regulation, including analysis of operating conditions and detection/analysis of various operating parameters
Training on Central Air Conditioning Control Principles
Training on Advanced PLC Programming, PLC Installation, Wiring, and Debugging
Data Acquisition and Real-time Monitoring training for entire central air conditioning system operating parameters using pressure transmitters, temperature sensors, and corresponding A/D conversion function modules
Configuration Technology training for achieving animation display of central air conditioning operation, operating data display, real-time monitoring, curve analysis, historical data display, alarm functions, and print configuration
Training on Fault Diagnosis and Troubleshooting
Application and Training of Data Acquisition Technology
Training on Installation and Use of Sensors and Transmitters
Installation Methods and Standards for Power Distribution and Control Systems
Common Problems in Refrigeration Systems
Common Problems in Control Systems
Common Problems in Power Distribution Systems
High-Pressure Protection Training
Communication Circuit Training
